LiYY - Electronic Control Cable

Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.

                     1. Conductor - Fine-stranded bare copper
                     2. Insulation - Core insulation of polyvinylchloride (PVC)
                     3. Filling - Outer sheath of polyvinylchloride (PVC), grey

Standards: Adapted to DIN VDE 0812
                      DIN EN 60228 class 5 (construction)
Core identification: DIN 47100 or factory standard

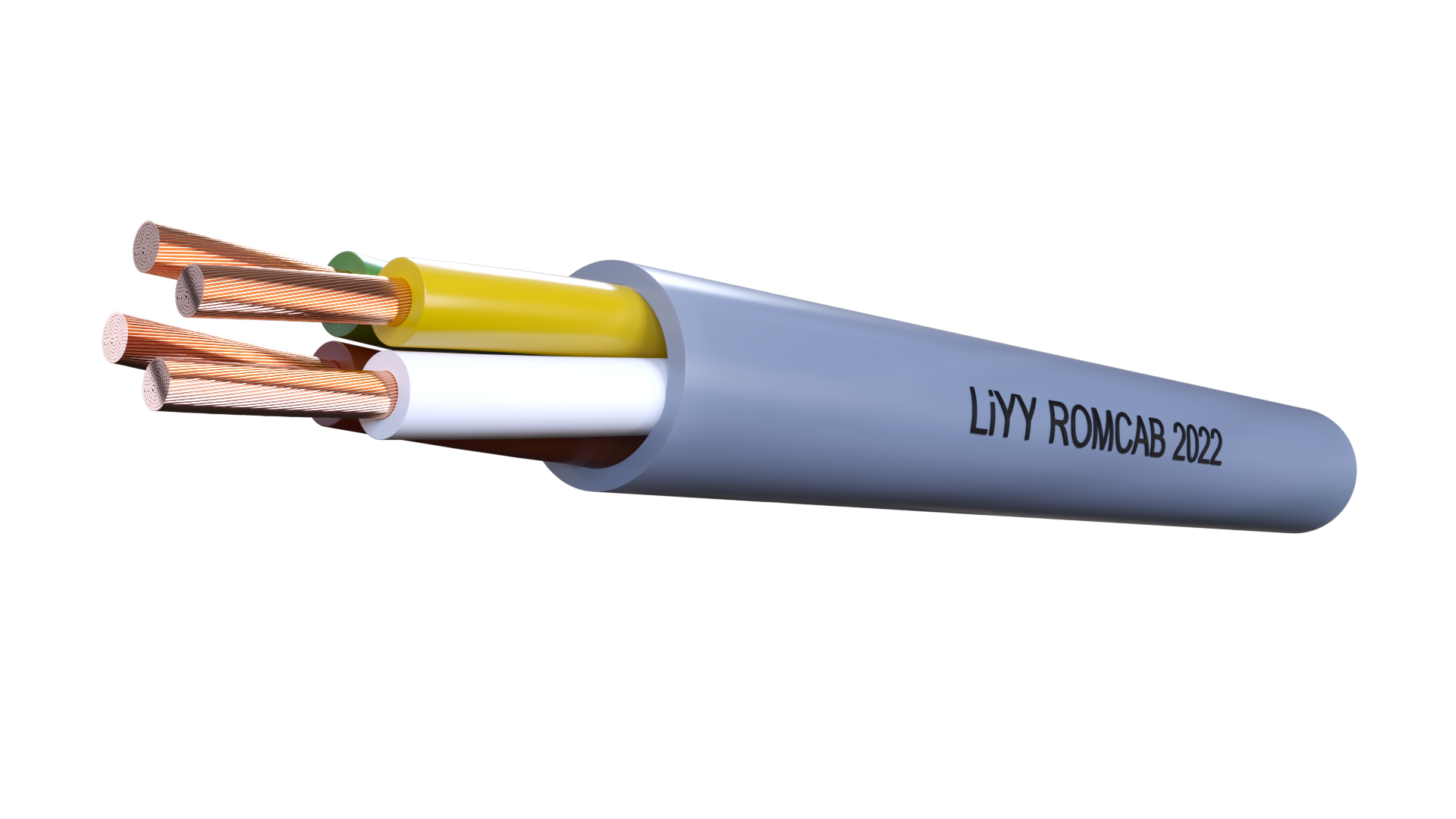

Tridimensional view

Cable Specifications

Electrical Performance:
      Nominal Voltage:  Peak    [V]    500Volt
      Test Voltage   [V]AC    1200Volt
       Bending radius in motion x diameter 10
       Insulation resistance min [MOhm/km] 100

Temperature range: in motion °C   -5°C till +50°C
                                        Fixed °C    -40°C till +80°C
                                        Operating temperature short circuit °C 150°C

Flammability: Reaction to fire EN 60332-1-2 - Eca
