YSLYCY 300/500V - PVC Control Cable with Copper Braiding

Application: Suitable as a signal and impulse cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies.

                     1.Conductor - Copper : Class 5 fine stranded according to EN 60228
                     2.Insulation -  core insulation of polyvinylchloride (PVC)
                     3.Inner sheath - polyvinylchloride (PVC)
                     4.Braiding - tinned round copper wires
                     5.Outer sheath - polyvinylchloride (PVC), grey, increased oil resistant

Standards: Adapted to DIN VDE 0281
                      DIN EN 60228 class 5 (construction)
Core identification: JZ: One core green/yellow, other cores are black with figures
           OZ: Every core is black with figures
            JB: Colours accordance with HD 308 standard with green yellow
            OB: Colours accordance with HD 308 standard without green yellow

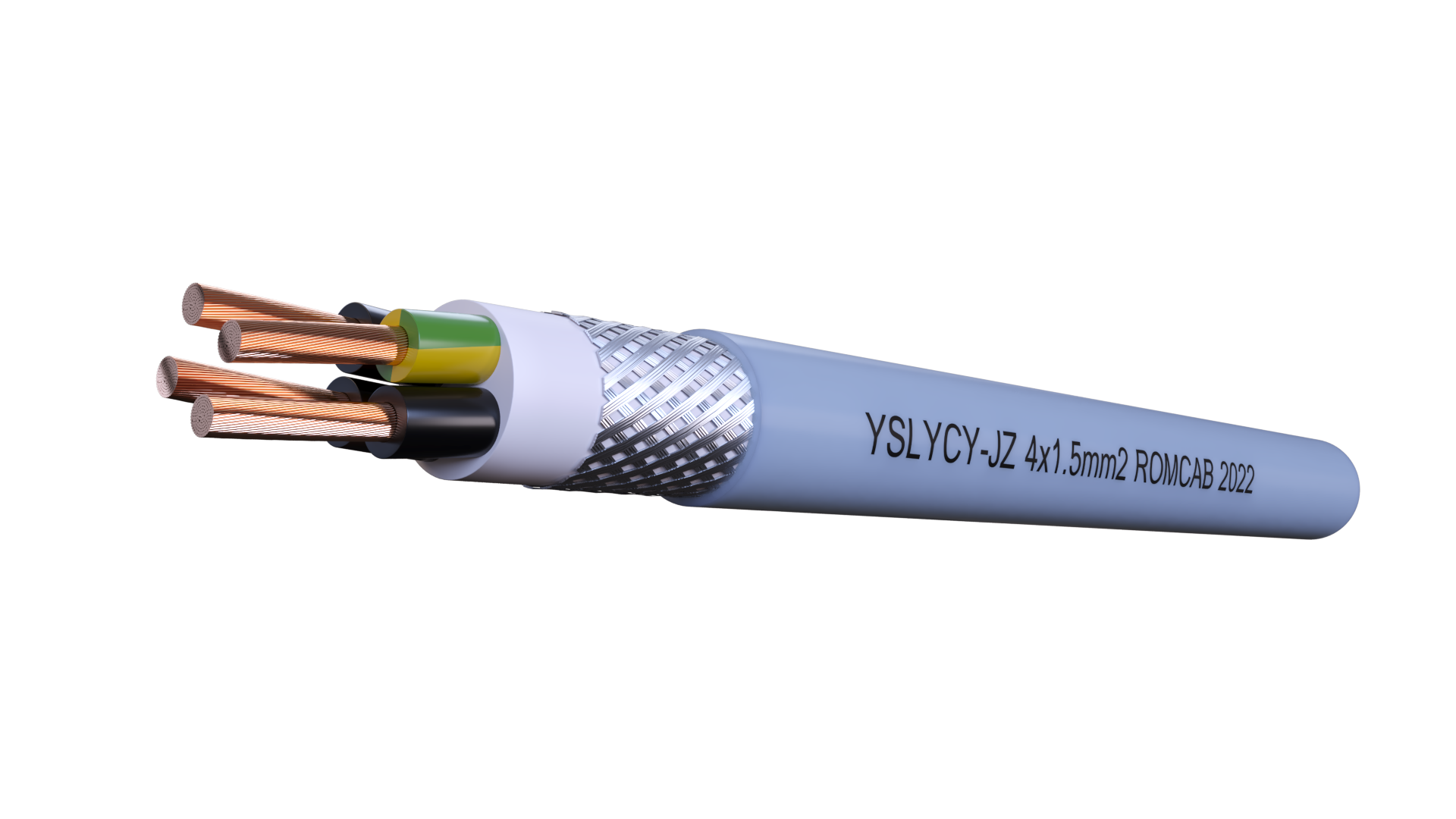

Tridimensional view

Cable Specifications

Electrical Performance:
      Nominal Voltage: 300 / 500 Volt
      Test Voltage [V]AC 2000
      Short circuit time max. [sec] 5
      Bending radius one time/fixed x diameter 10
                                     in motion x diameter 20

Temperature range: in motion °C -5°C till +70°C
                                        Fixed °C -30°C till +70°C
                                       Operating temperature short circuit °C 150°C

Flammability: Reaction to fire EN 60332-1-2 - Eca
