AC2XABY-F 0,6/1kV - Crosslinked polyethylene insulated and PVC sheathed power cable, steeltape armored
Application: Power supply to power stations. The cables must be protected against: corozive chemicals and chemical solvents. UV resistant cables
Construction:
1.Conductor - Aluminum : solid (RE) / Stranded (RM/SM)
2.Insulation - Cross linked polyethylene
3.Filler
4.Inner sheath - Polyvinylchloride (PVC)
5. Blank or zinc-plated cold-rolled
6. Polyvinylchloride (PVC) Black, UV-resistant
Standards: SP 66/2023

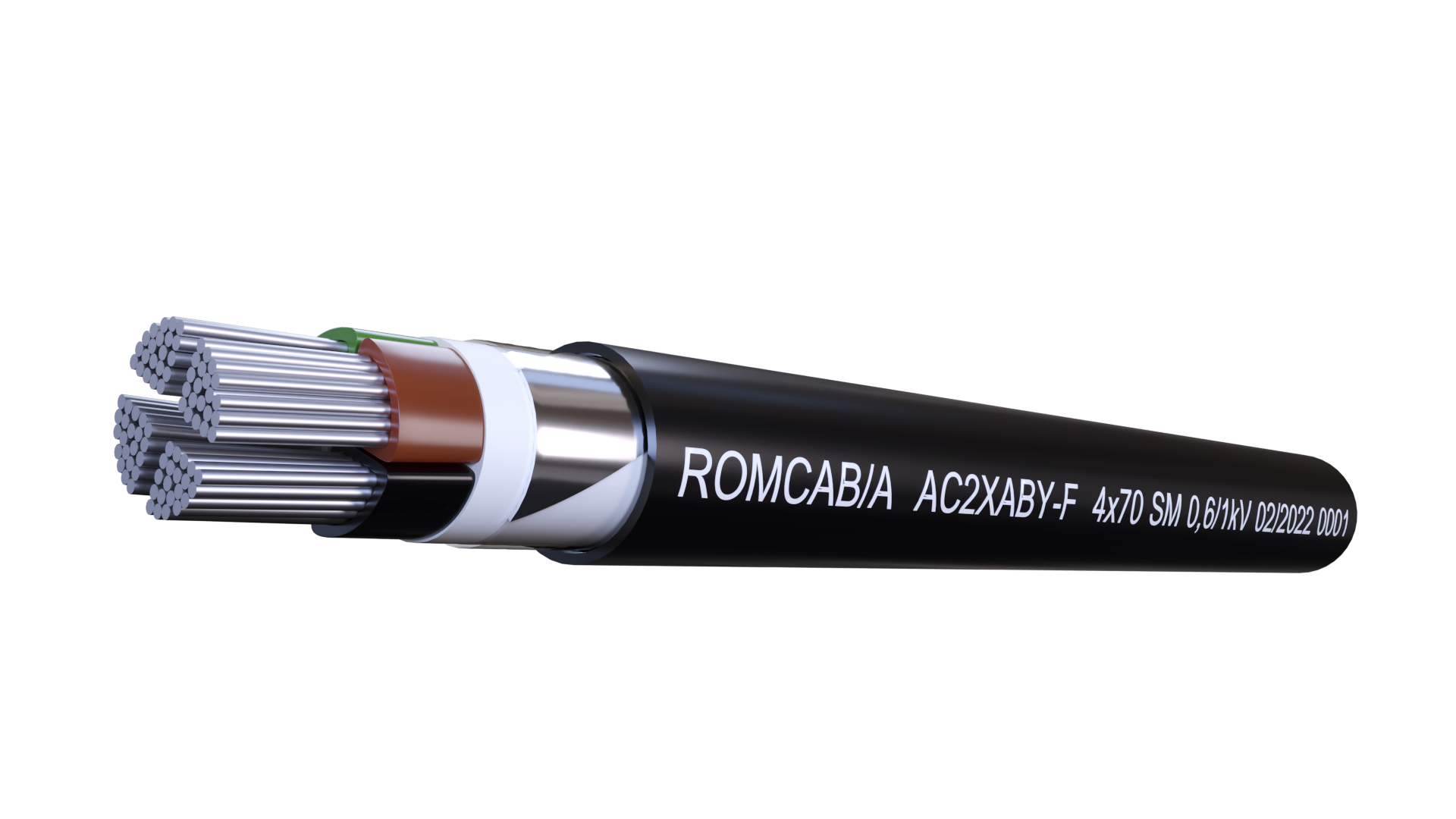

Tridimensional view
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time: max. [sec] 5
Bending radius: Single circle x diameter 12
Temperature range: with installation and handling -5°C
Storage -30°C
Max. perm. storage temp.: +70 °C
Max. Short-Circuit temp.+250 °C
Fire classification CPR class: EN 50575 - Eca
