Application: Monophase connections for Uo/U voltages of 0,6/1kV.

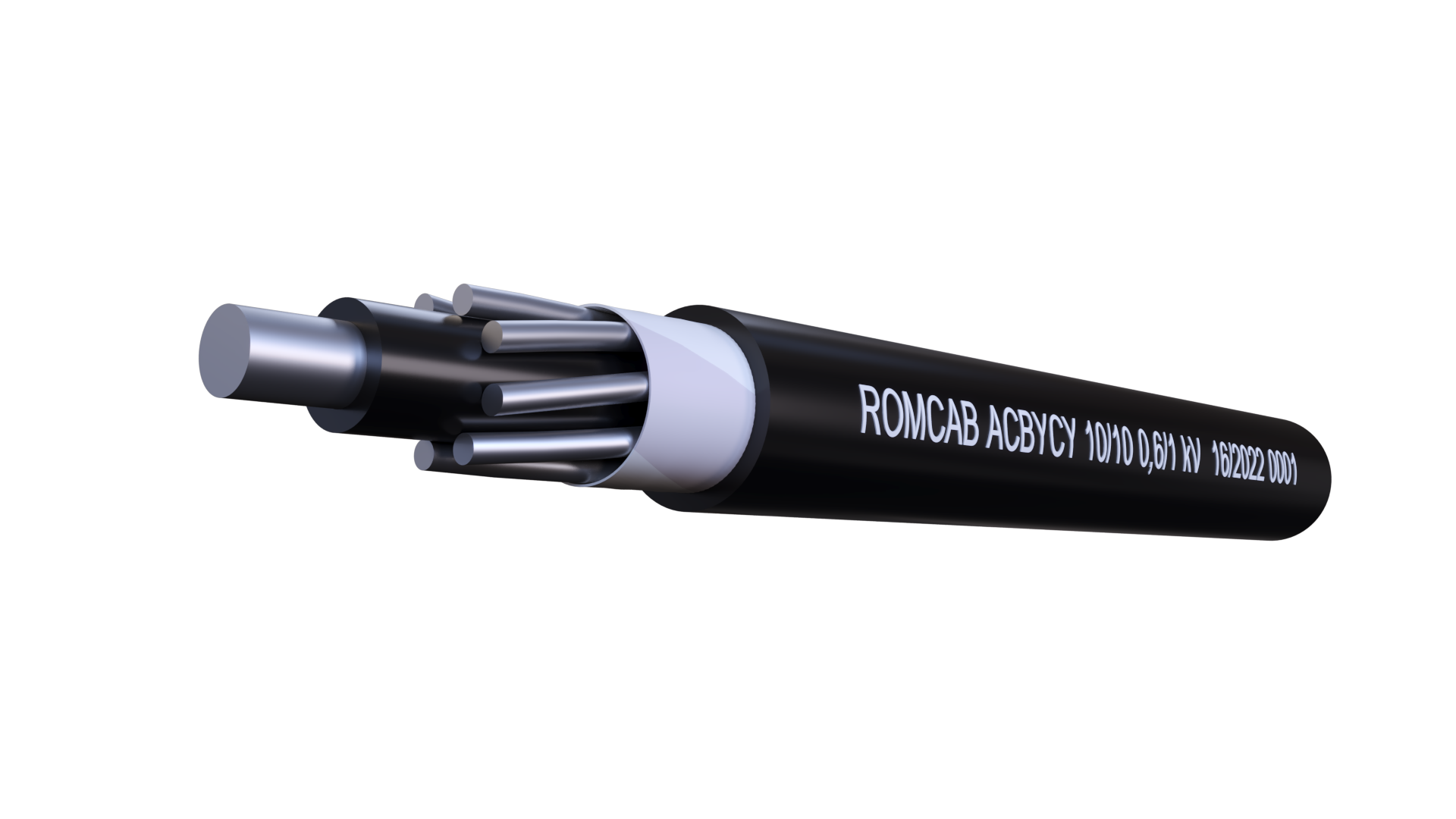

Construction:
1.Conductor - Aluminum : solid (RE) /stranded (RM)
2.Insulation - Polyvinylchloride (PVC)
3.Screening - Concentric conductor of aluminium wires
4. Inner sheath - Polyvinylchloride (PVC),
5.Outher sheath - Polyvinylchloride (PVC) Black, UV-resistant
Standards: SP 76/ 2013
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Bending radius: Single circle x diameter 10
Multi core x diameter 12
Short circuit time: 5s
Temperature range: in motion °C -5°C till +70°C
Fixed °C -40°C till +70°C
Max. short-circuit temp. +160°C
Fire classification CPR class: EN 50575
