CYKY 0,6/1kV - Power cable 0,6/1 kV with Cu conductors, PVC insulated and sheathed
Application: In earth, ducts, on support brackets, in dry and wet conditions etc, where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry.
Construction:
1.Conductor - Copper : solid (RE) or stranded (RM/SM) bare copper
2.Insulation - Core insulation of polyvinylchloride (PVC)
3.Filling - Core covering or taping
4.Outher sheath - Polyvinylchloride (PVC), Black, UV-resistant
Standards: TP PRAKAB 01-03
CSN 7659 (HD 603)
License: This cable is EZU certified
Core identification: Accordance to HD 308 S2

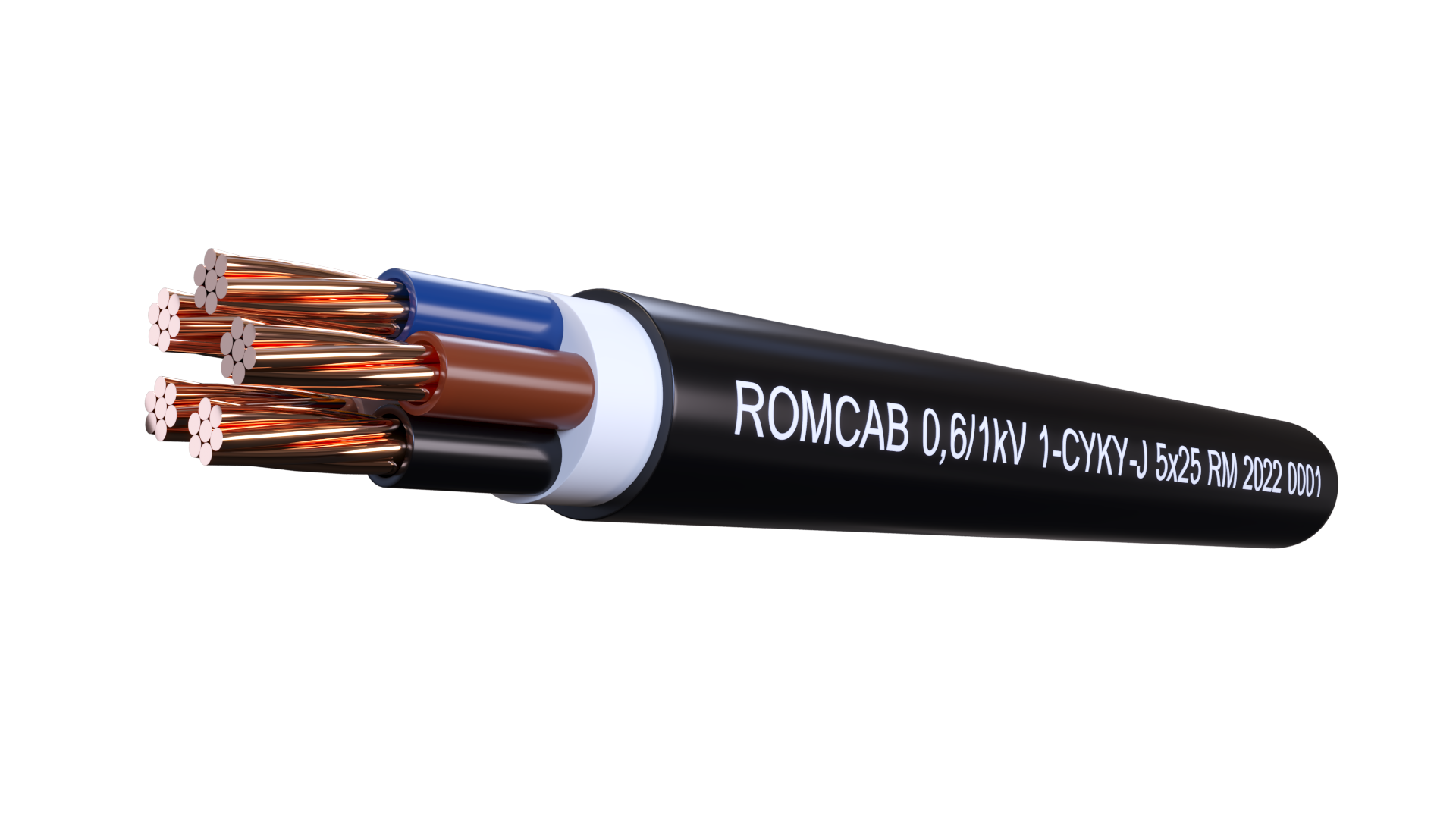

Tridimensional view
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single circle x diameter 15
Multi core x diameter 12
Temperature range: in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. temperature short circuit 160°C
Fire classification CPR class: Eca
