ACYAbY-F 0,6/1kV - PVC insulated and sheathed power cable, steel tape armored

Application: Power supply to power stations. The cables must be protected against: corozive chemicals, chemical solvents UV resistant cables.

Construction:
         1.Conductor - Aluminum : solid (RE) /stranded (RM/SM)
         2.Insulation - Polyvinylchloride (PVC)
         3.Filler
         4. Inner sheath
         5. Blank or zinc-plated cold-rolled
         6. Polyvinylchloride (PVC) Black, UV-resistant

Standards: SP 58 / 2023

Core identification: Conform SR HD 308 S2

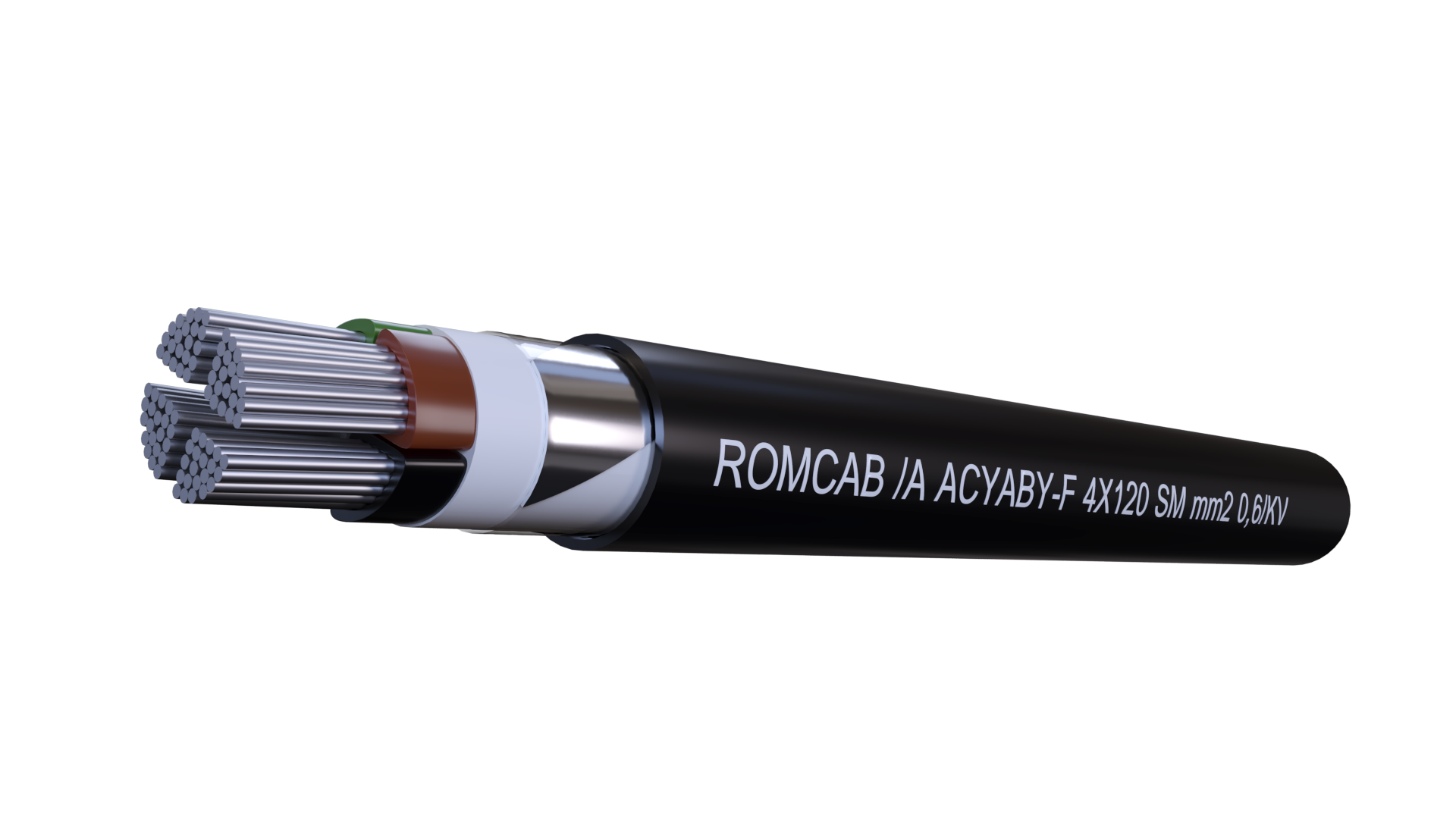

Tridimensional view

Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage: [V]AC  4000
Short circuit time: 5 sec
Bending radius: Single circle x diameter 6
                              Multi core x diameter 12

Temperature range: in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. short-circuit temperature: +160°C

Fire classification CPR class: EN 50575  - Eca
