CYY-F 0,6/1kV - PVC Insulated Current Cable
Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
1.Conductor - Copper : solid (RE) /Stranded (RM/SM)
2.Insulation - Core insulation of polyvinylchloride (PVC)
3.Filling - Core covering or taping
4.Outher sheath - Polyvinylchloride (PVC)
Standards: SP 106 / 2023
Core identification: Accordance to HD 308 S2

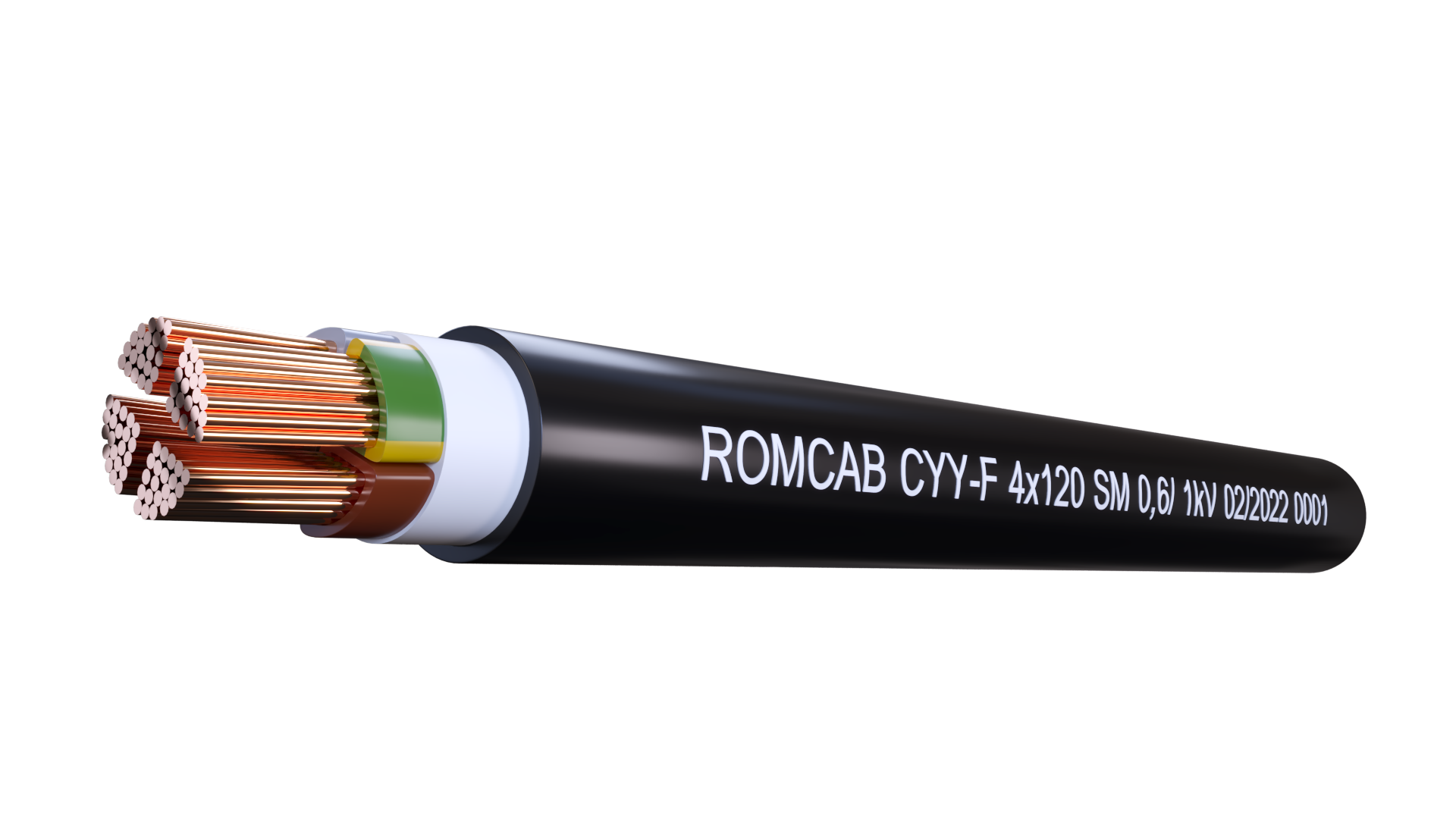

Tridimensional view
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: single core x diameter 15
Multi core x diameter 12
Temperature range: in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Max. Short-Circuit Temp.: short circuit 160°C <= 300mm; 140°C > 300mm
Fire classification CPR class: Reaction to fire EN 50575 – Eca
