E-AY2Y-J 0,6/1kV – Underground cable cables with PVC insulation and HDPE outhersheath

Application: Power distribution cables in power stations, industrial installations and switchgears, as well as in local mains.
For fixed installation undergroud, in interior premises, cable ducts, in open air, in water – as permited by the local building regulations – under severe mechanical stressing during installation and operation.

Construction:
        1.Conductor - Aluminum : solid (RE) / Stranded(RM/SM)
        2.Insulation - Core insulation of polyvinylchloride (PVC)
        3.Filling - PVC core covering (FM) or taping (BD)
        4.Outher sheath - Polyethylene (HDPE), Black, UV resistant

Standards: ÖVE/ÖNORM E 8200-603: HD 603 S1; IEC 60228
‍

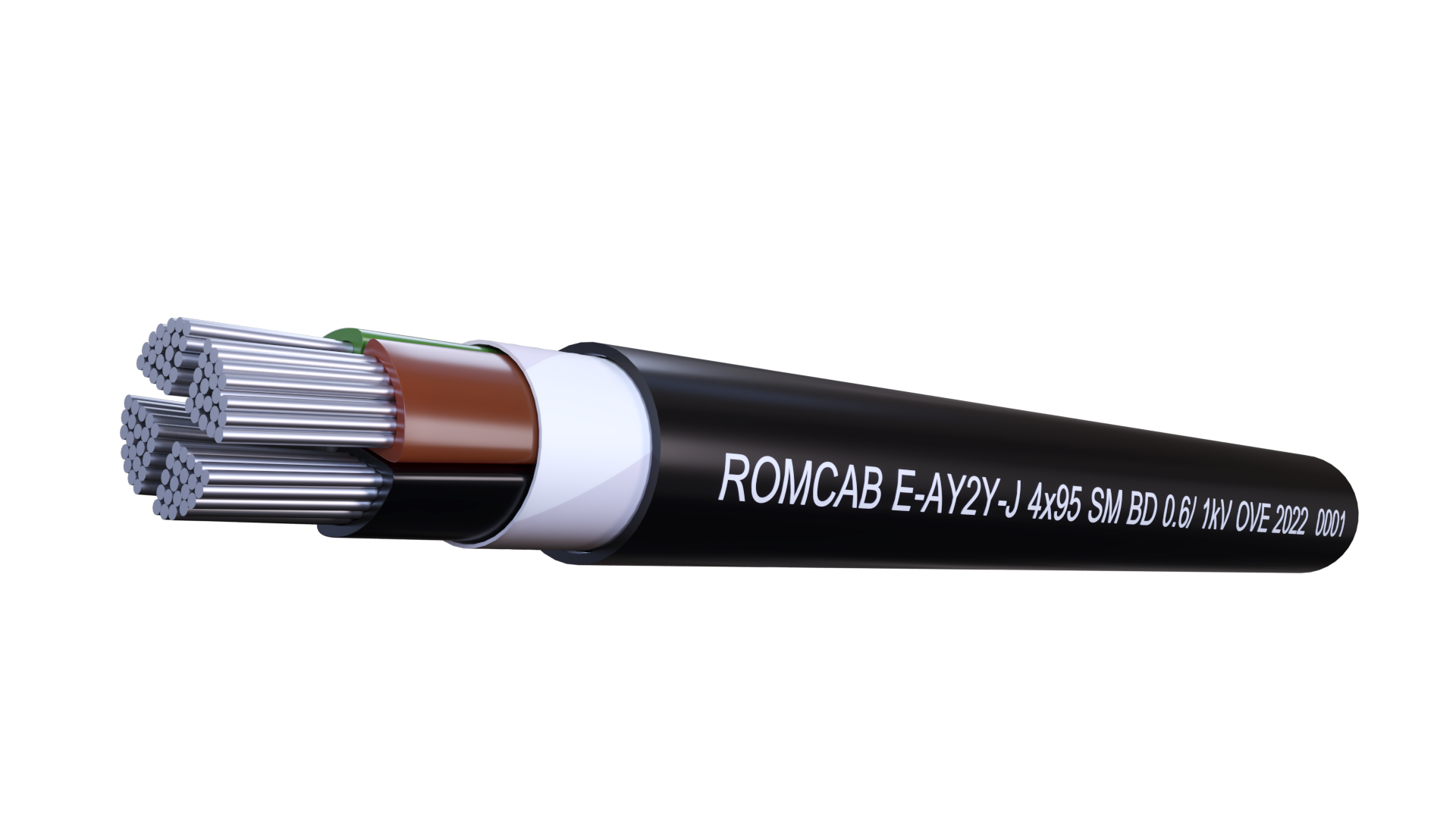

Tridimensional view

Declaration of Performance

Electrical Performance:
      Nominal Voltage: 600/1000 Volt
      Test Voltage [V]AC 4000
      Short circuit time max. [sec] 5
      Bending radius:   x diameter 15

Temperature range: -30°C till +70°C
Max. Short-Circuit Temp.: +250°C
Minimal temperature for laying and manipulation : -5 °C

Fire classification CPR class: EN 50575 – Eca
