EAYY 0,6/1kV – PVC Insulated Cable with Aluminium Conductor
Application: This power cable is suitable for fixed installations, preferably in cable ducts, indoors, outdoors, in water or underground if no mechanical damage is to be expected.
Construction:
1.Conductor - Aluminum : solid (RE/SE) / Stranded (RM/SM)
2.Insulation - Core insulation of polyvinylchloride (PVC)
3.Filling - PVC core covering or taping
4.Outher sheath - Polyvinylchloride (PVC), Black
Standards: ÖVE/ÖNORM E 8200-603: HD 603 S1; IEC 60228
Core identification: HD 308 S2

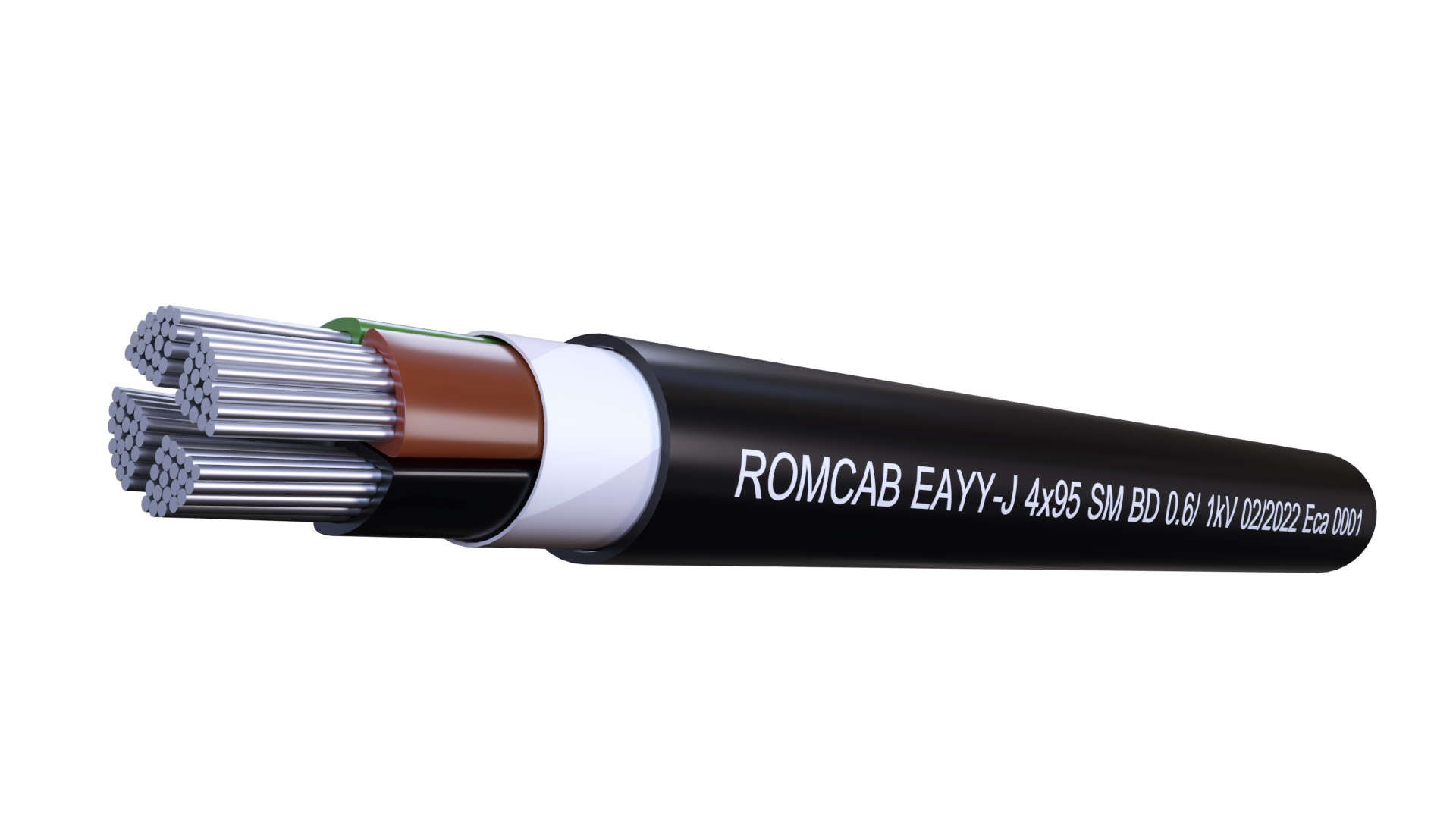

Tridimensional view
Electrical Performance:
Nominal Voltage: 600/1000 Volt
Test Voltage [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: single core x diameter 15
Multi core 12
Temperature range: in motion °C -5°C till +70°C
Fixed °C -30°C till +70°C
Operating temp. short circuit:
160°C <=300mm2 140°C > 300mm2
Fire classification CPR class: EN 50575 – Eca
