NAYCY-O 0.6/1kV - Power cables with aluminium conductors and with copper concentric conductor

Application: In dry, humid and wet locations, cable ducts, outdoors, underground and in water

Construction:
1.Conductor: Aluminum : solid (RE) /stranded (RM/SM)
2.Insulation: Polyvinylchloride (PVC)
3.Filling: PVC inner sheath
4.Screening: Concentric conductor of cooper wires and copper tape
5.Outer sheath: Polyvinylchloride (PVC)

Standards: HD 603 S1; HD 308 S2; IEC 60228
Core identification: HD 308 S2
License: This cable is VDE certified

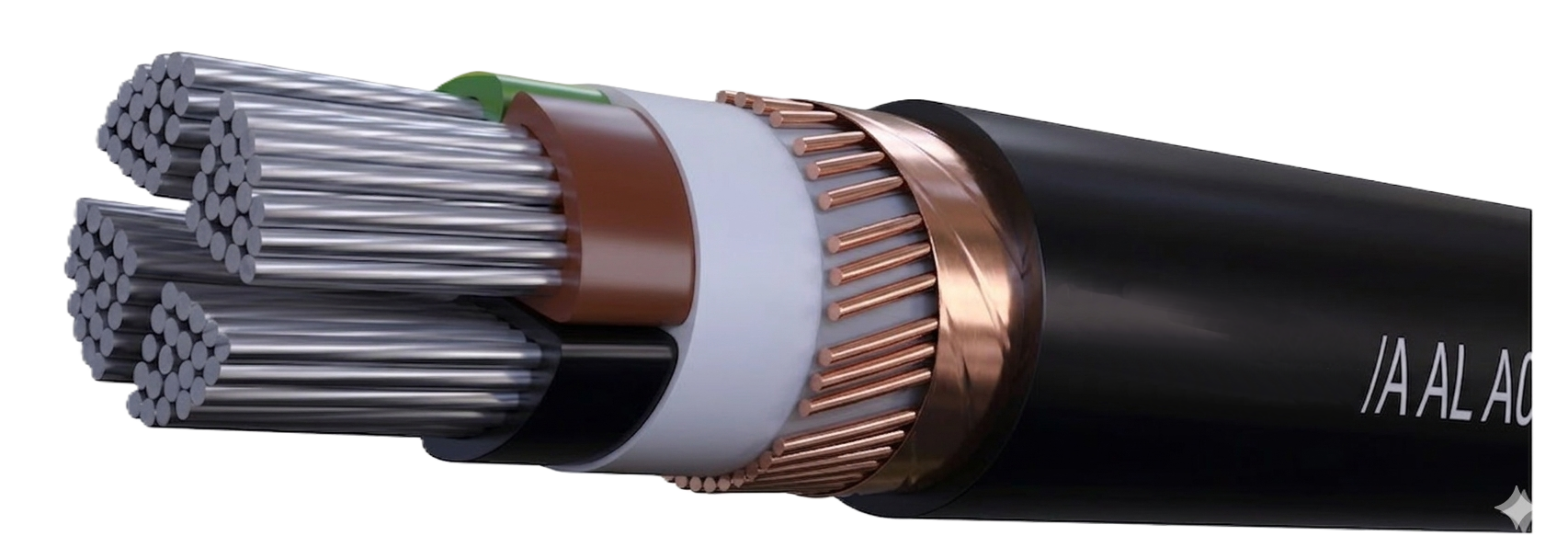

Tridimensional view

Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Test voltage [V]AC 4000
Short circuit time max. sec 5
Bending radius in motion x diameter 15

Temperature range: in motion 70°C
Max. short-circuit temp: +160°C

Fire classification CPR class: EN 50575 – Eca
