NYCY 0,6/1kV - PVC Insulated Heavy Current Cable with Concentric Conductor
Application: In dry, humid and wet locations, cable ducts, outdoors, underground and in water.
Construction:
1.Conductor - Copper : solid (RE)
2.Insulation - Polyvinylchloride (PVC)
3.Filling - core covering or taping
4.Screening - concentric conductor of copper wires and copper tape
5.Outher sheath - Polyvinylchloride (PVC), Black
Standards: HD 603 S1; HD 308 S2; IEC 60228
License: This cable is VDE certified
Core identification: Accordance to HD 308 S2
JZ: One core green/yellow, other cores are black with figures
OZ: every core is black with figures

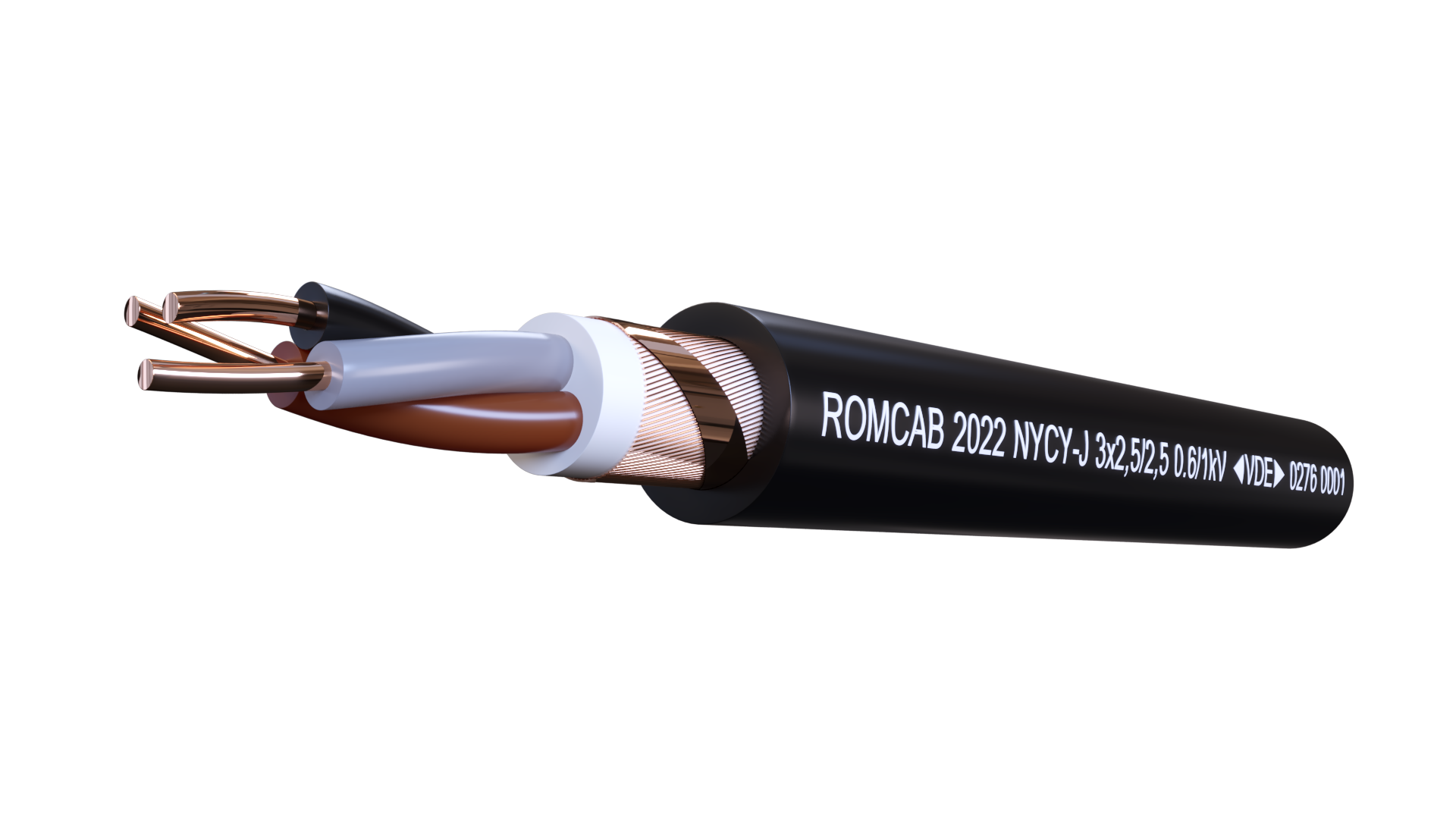

Tridimensional view
Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Test Voltage: [V]AC 4000
Short circuit time max. [sec] 5
Bending radius: Single core x diameter 12
In motion x diameter 15
Temperature range: in motion: -5°C till +70°C
Fixed: -30°C till +70°C
Max. temp. short circuit: +160°C
Fire classification CPR class: EN 50575 - Eca
