TYIR 0.6/1kV - Twisted aluminium conductors, insulated with PVC
Application: Power distributions networks with rated voltages up to Uo/U 0,6/1 kV
Construction:
1.Conductor - Aluminum: solid (RE) / Stranded (RM)
2.Insulation - Polyvinylchloride (PVC)
Standards: SP 62/2012

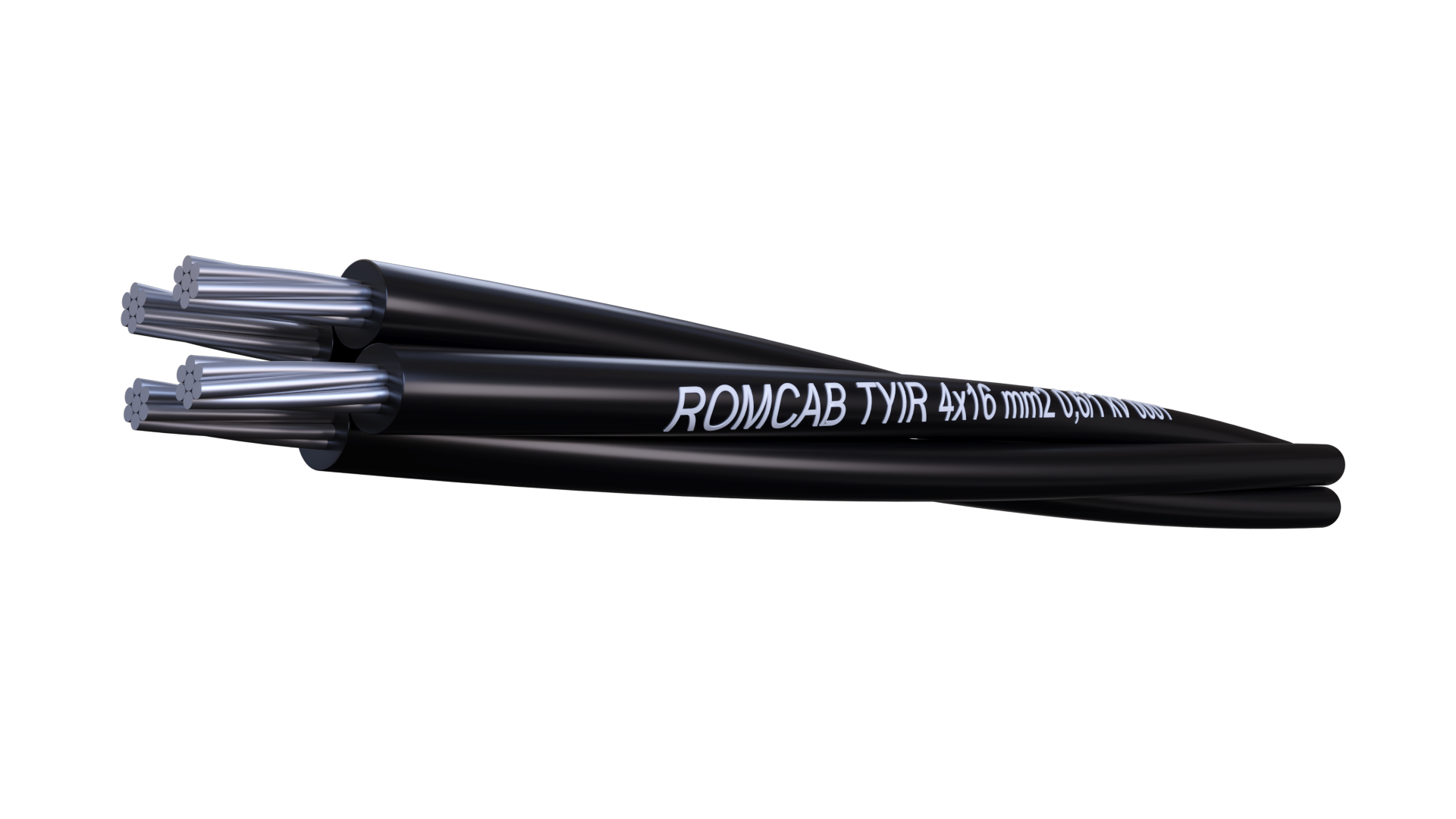

Tridimensional view
Electrical Performance:
Nominal Voltage: 600 / 1000 Volt
Test voltage [V]AC 3500
Short circuit time max. sec 5
Bending radius in motion x diameter 18
Temperature range: -30°C till +70°C
Max. Short-Circuit Temp.: +160°C
Fire classification CPR class: EN 50575-Eca
